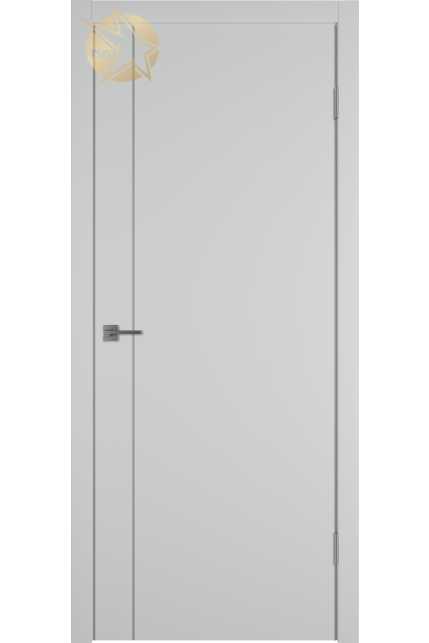

U1V

The U series is represented by a wide range of panel doors in the latest multilayer coating – eco-veneer, which gives the coating additional resistance to chemical and physical influences.

Technical specifications
The new collection of doors is presented in a coating – vandal-proof eco-veneer with a protected layer of varnish (Germany), which gives the door a smooth and elegant appearance, as well as unsurpassed technical properties. The doors are moisture-proof, resistant to temperature changes. The coating is resistant to UV rays, chips and scratches.
The frame-panel construction of doors with HDF panels guarantees durability and resistance to deformation of doors.
Actual textures and color palette. The series features both plain smooth tones and coatings with a "concrete" texture - which correspond to modern stylistic trends.
Doors with an aluminum edge reliably protect the ends from mechanical damage, increase the service life.
The doors are supplied with factory-installed fittings on professional factory equipment, which eliminates the "human factor" during installation work.
The manufacture of doors in non-standard sizes allows us to satisfy customer requests for the manufacture of doors for an "individual" opening.

Color options: white, light gray, milky, onyx, antique loft, jack loft.
Aluminum molding: black, brushed chrome.
Edge: Brushed aluminum, black aluminum.
Canvas dimensions: 400, 600, 700, 800, 900 x 2000 mm.
Non-standard dimensions: height: from 1900 mm to 2200 mm, pitch 100 mm.
Factory lock-in 196 and hidden Eclipse 2.0 hinges.

Mouldings:
MDF material. The coating is Eco-veneer.
Complanar box with packing: 75x38x2100/2300 mm.
The platband is complanar.: 90x10x2140/2350 mm.
T/sc box with packing: 80x32x2100/2300 mm.
Trim t/sk: 70x8x2140/2350 mm.
T/sc clearance: 10x100/150/200x2130/2300 mm.
Skirting board: 16x70/100x2100 mm.


With a coplanar mouldings, the door is located in the same plane with the platbands, forming a single whole on the front side, thereby minimizing gaps and "stepping". The focus remains on one object and the effect of minimalism is formed, which is so in demand in modern interior designs.
